Lineup

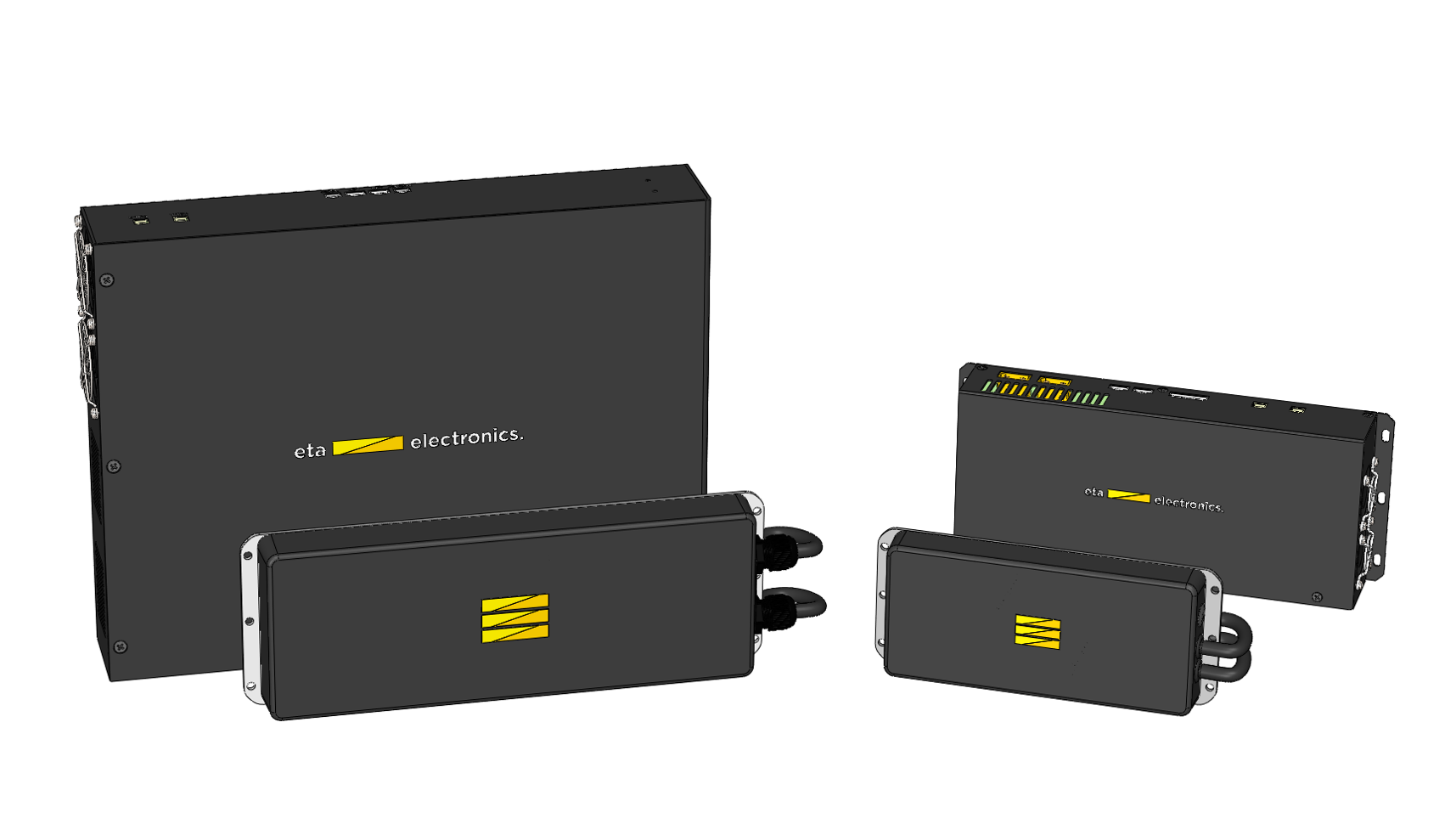

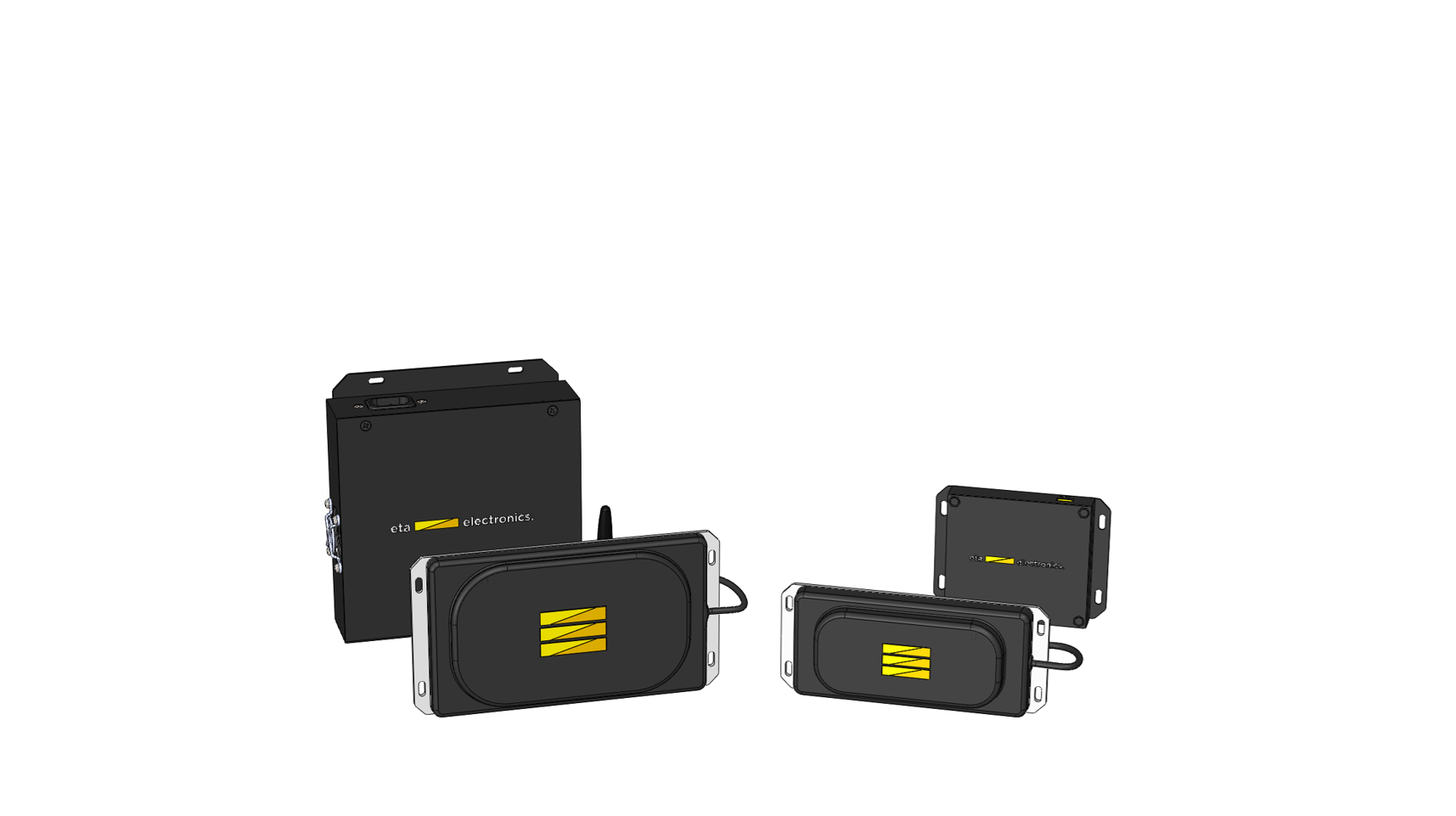

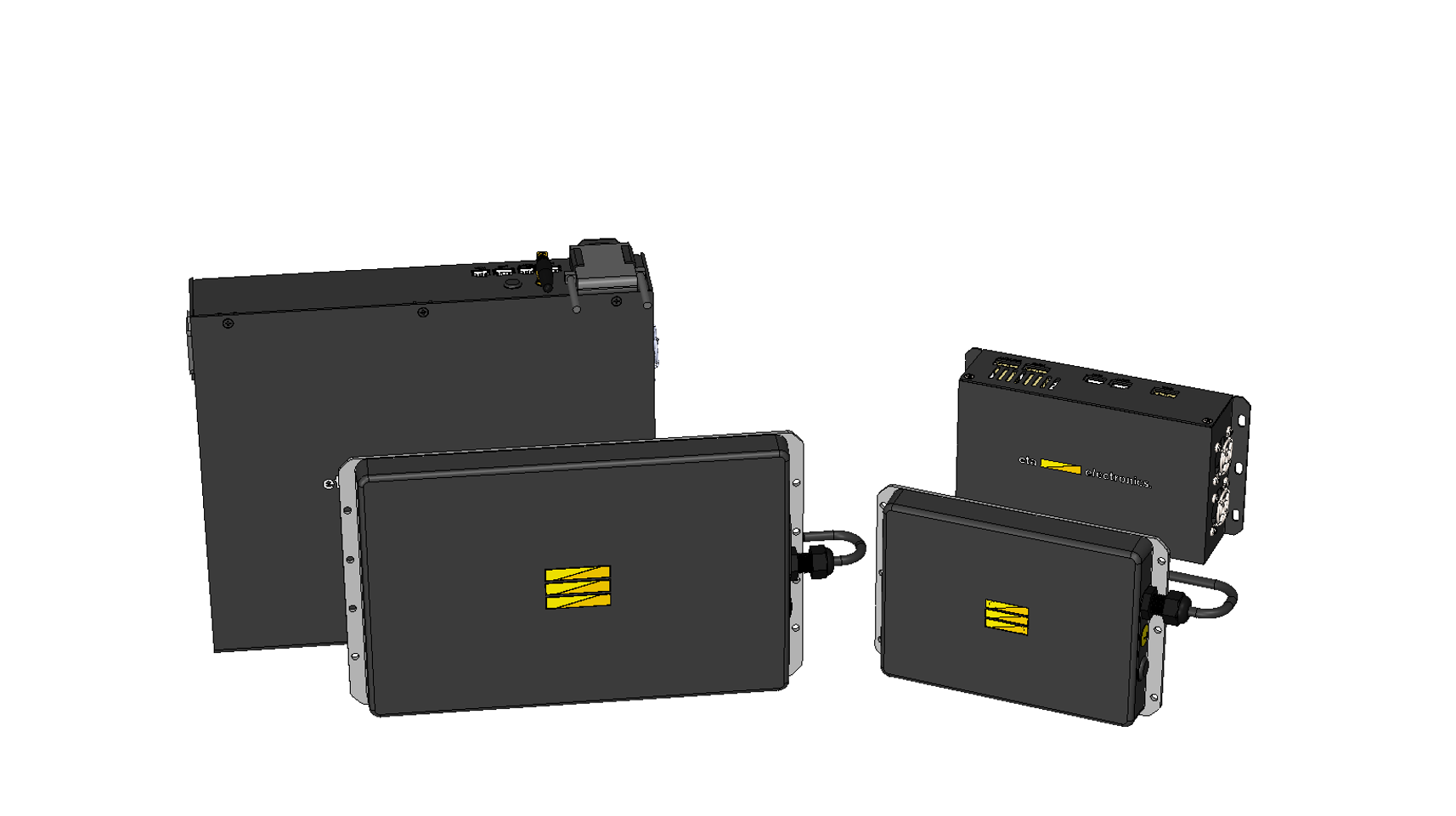

| Solution | ELYX-150 | ELYX-10A | ELYX-1000 | ELYX-40A | ELYX-80A |
|---|---|---|---|---|---|
| Transmitter (Tx) | DT-150 | DT-10A | DT-1000 | DT-40A | DT-80A |
| Receiver (Rx) | DT-150 | DT-10A | DT-1000 | DT-40A | DT-80A |
| Charging Efficiency | 88 % (DC to Battery) | 88 % (DC to Battery) | - | 88 % (DC to Battery) | - |
| Charging Range |
0 – 40 mm distance offset ±40 mm x-axis offset ±20 mm y-axis offset |
0 – 50 mm distance offset ±70 mm x-axis offset ±40 mm y-axis offset |
- |
0 – 40 mm distance offset ±30 mm x-axis offset ±20 mm y-axis offset |
- |
| Charging Voltage Range | 24 / 36 / 48 V | 24 / 36 / 48 V | 15 ~ 58.8 V | 15 ~ 58.8 V | 15 ~ 58.8 V |
| Charging Current | (Max) 5 A | 10 A | (Max) 30 A | 40 A | 80 A |
| Charging Power | 150 W | (Max) 550 W | 1 kW | (Max) 2.4 kW | (Max) 4.8 kW |
| Spec Sheet | download | download | download |
-

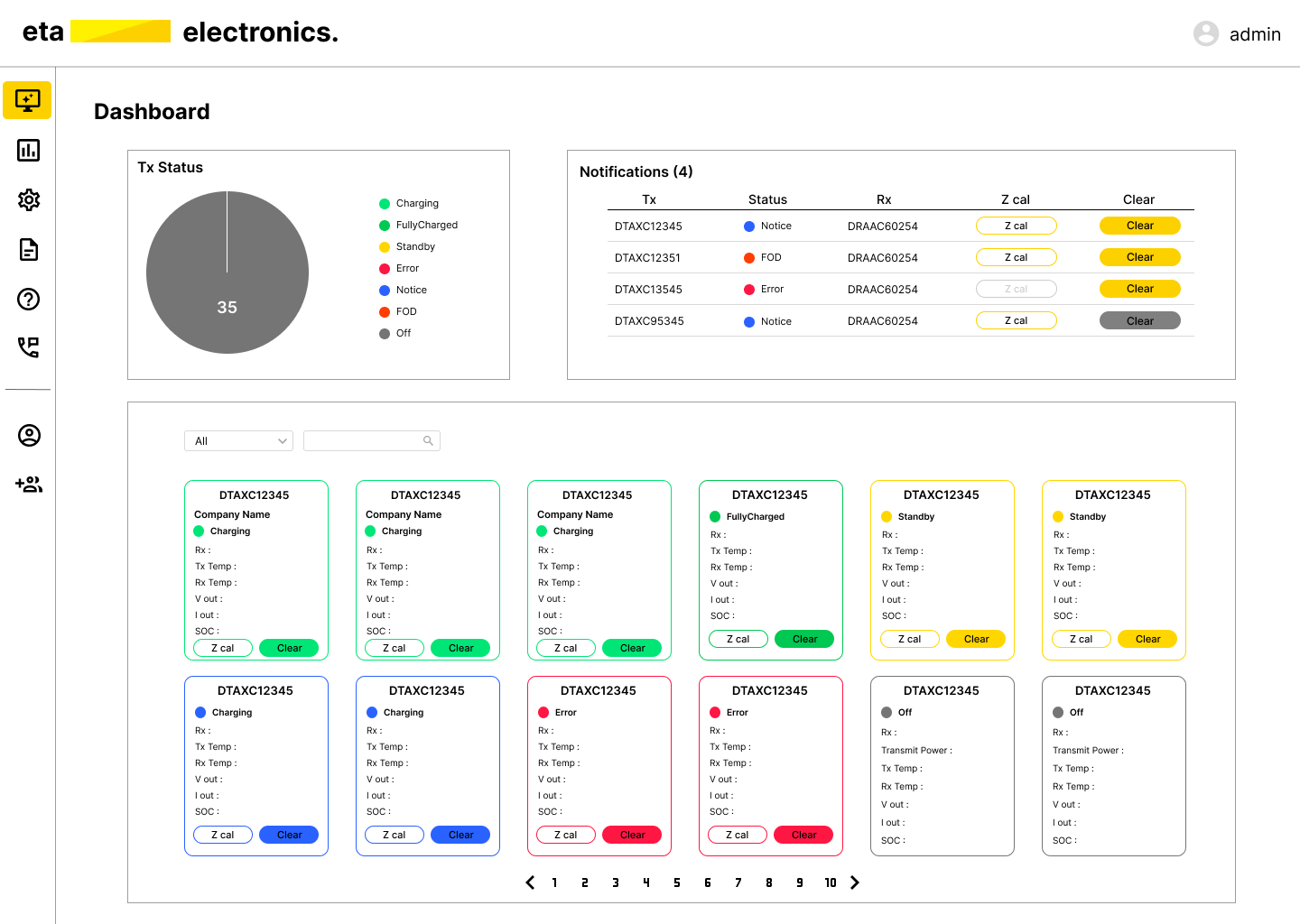

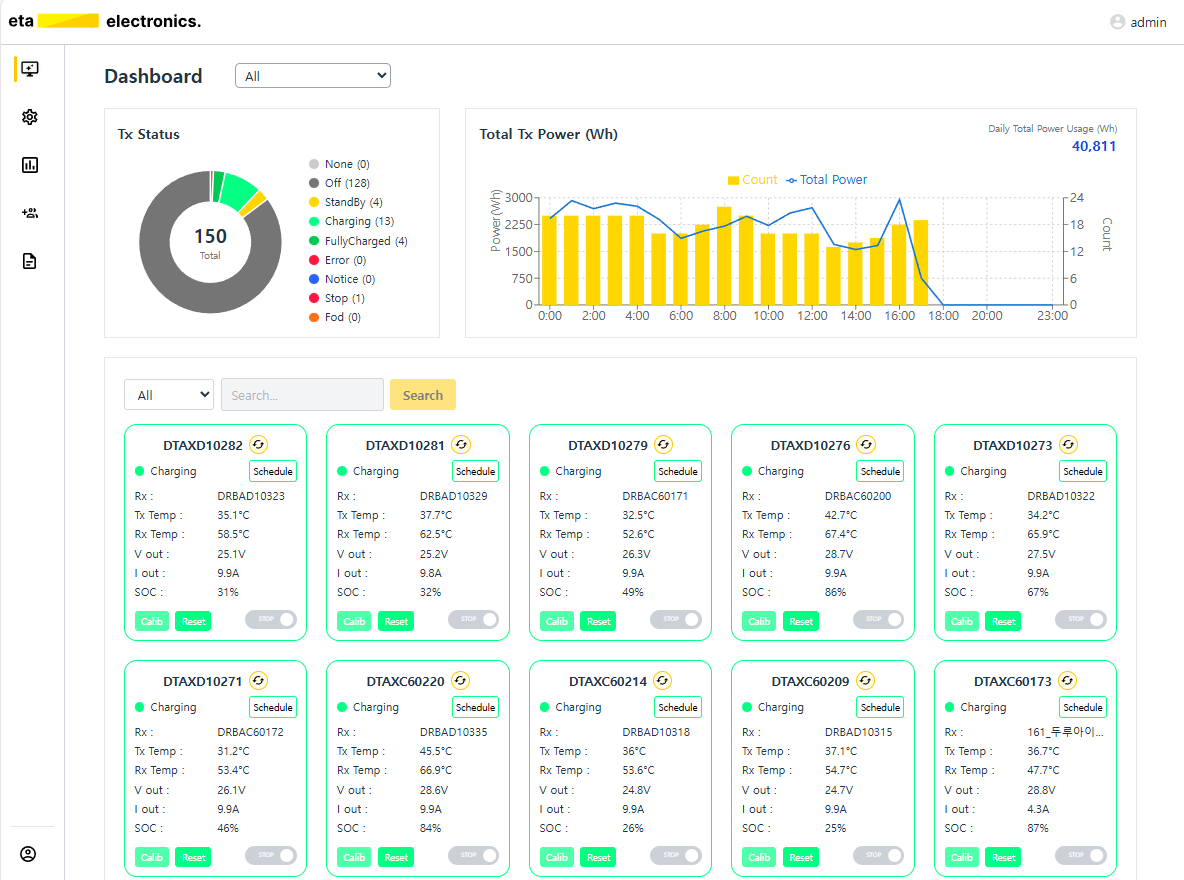

Real-Time Monitoring and
Remote ControlMonitoringTx/Rx Power, Charging status, Temperature, SoC, Fault diagnosis, and moreRemote ControlDevice registration and deregistration, Calibration, System reset, and more
-

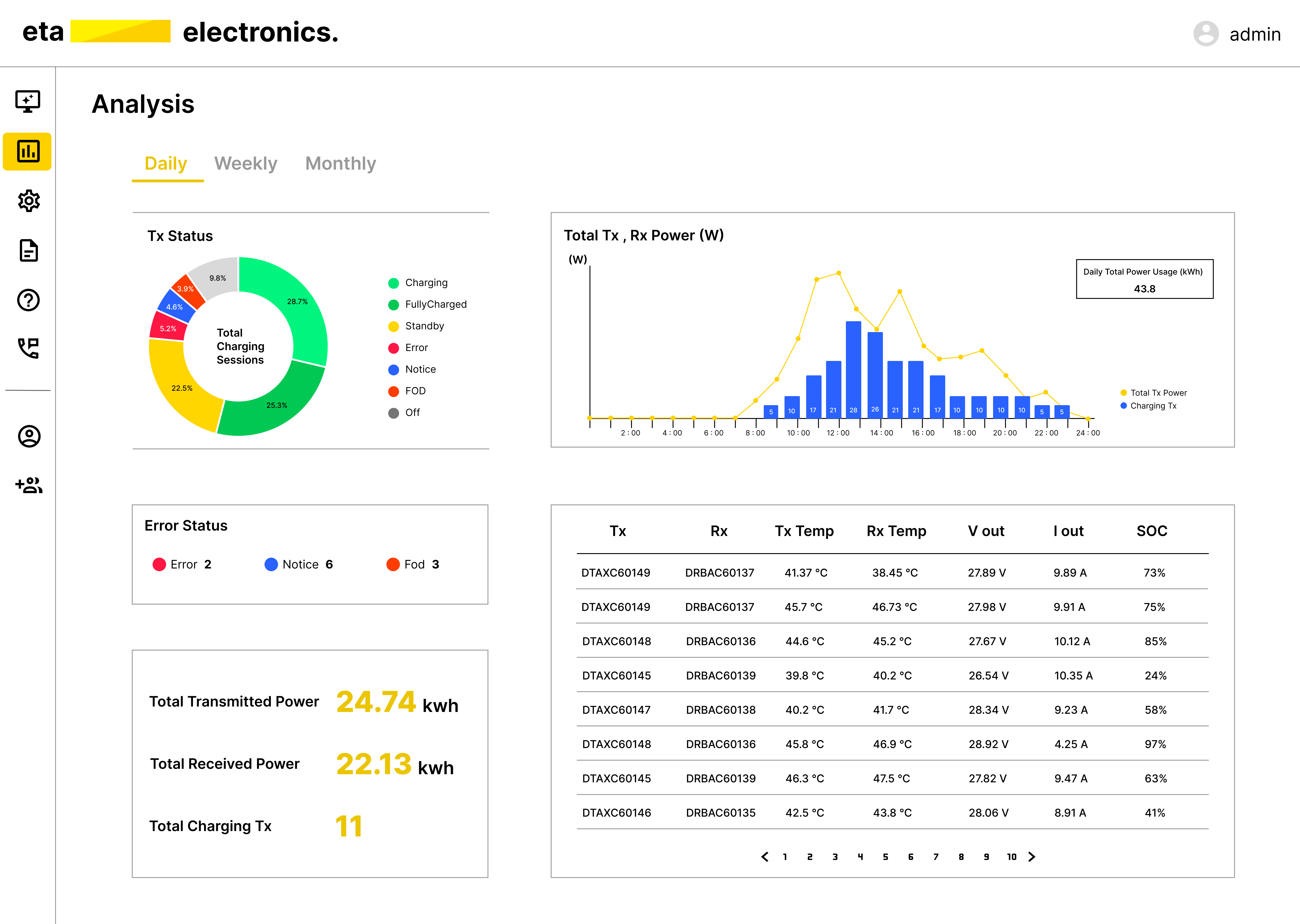

Power Big Data Analysis and
PredictionPattern Analysis and Prediction of Wireless Charging Power Big Data
Enables Optimized Charging Management and Stable Power Supply
-
Convenience
High Charging Efficiency (up to 88%)
Wide Charging Range (±5cm)
Compact and Lightweight
Coil ModuleEnables Fully Autonomous Charging
without Human Intervention24/7 Real-Time Monitoring
for Effortless Management
through ELYX Link -
Safety
Korea’s First and Only KC-Certified
Wireless Charging SolutionProven Through the Most Extensive
Use Cases NationwideAdvanced Protection with
OVP, OCP, OTP, and FOD Functions
Enabled by Precision Control
and Protection AlgorithmsIP66-Rated and Explosion-Proof
Design for Extreme Environments -
Efficiency
Seamless Charging
with Contactless TechnologyScalability to Charge Batteries
of Various Specifications
with a Single Charging ModuleFlexible Response to Sudden Changes
in Charging Conditions
with Built-In CalibrationExceptional Maintenance Efficiency
Powered by
ELYX Link’s Fault Diagnosis Solution

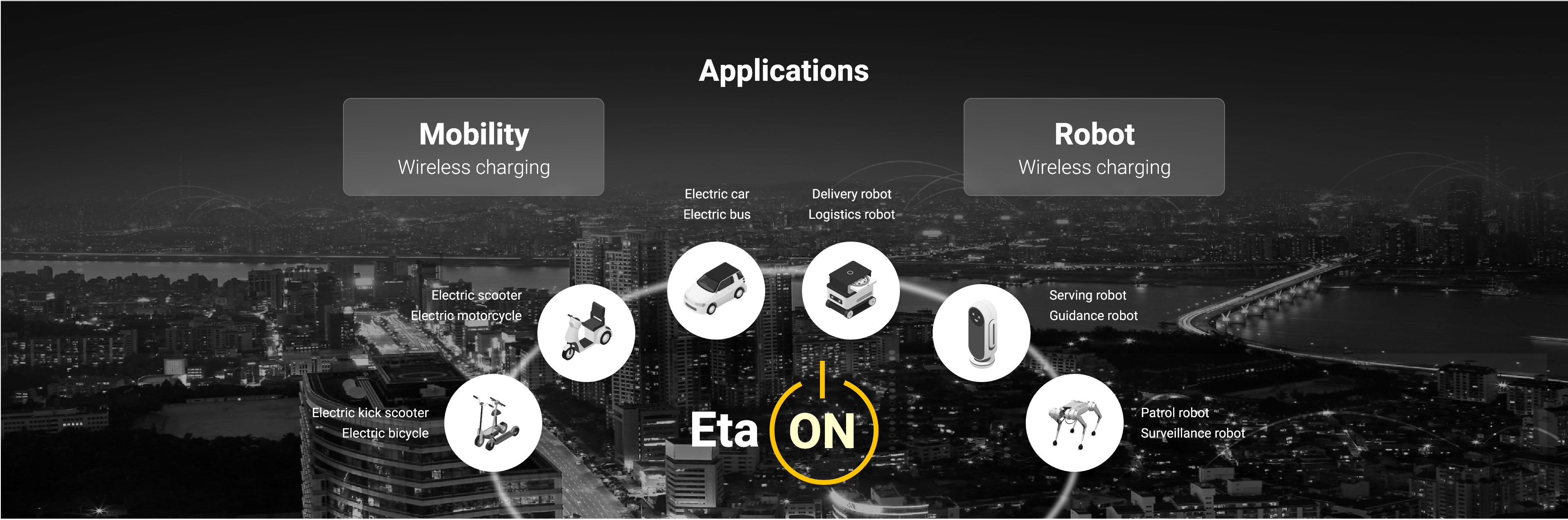

Applications
